Opti-Stack - automated Stacking systems
The automatic stacking systems are designed to dramatically increase the capacity of the main machine and to reduce labor costs.
Product Price
Technical Details
Product Category
Company website
4
products -
System TM A/S
Our recommended products and services
-
-

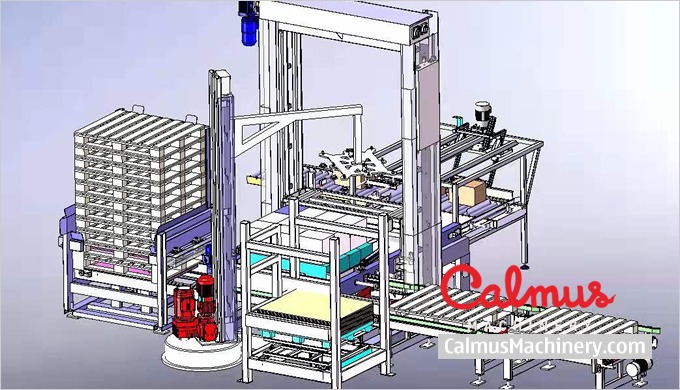

Fully-automatic Carton Palletizing Machine Case Palletizer w/Anti-Slip Sheet Applicator This is a low-level palletizer and used to stack cartons or other packs in order on a pallet with an anti-slip sheet under each layer. It works automatically and packs can be stacked on a pallet by multiple layers. The palletizer employs a touch screen PLC controller and is easy to operate. Composition: 1. Pack sorting feeder Sort packs according to a set pattern and then convey them. 2. Pack palletizer Catch sorted packs and then rise, move and put them on a pallet. 3. Pallet storage and feeder 5-8 empty pallets can be stacked in the storage section. Pallets are fed to the palletizer according to the PLC setting. 4. Loaded pallet deliver When a pallet is loaded fully, it will be delivered to a designated location. Materials: Frame: SS41 steel Axes: S45C steel Controller enclosure: SS41 steel Guide plate: SS41 steel Specifications: Palletizing capacity (including anti-slip sheet application): 3-4 cycles/min Power supply: 3 phases, customized voltage, 6KW Air consumption: 500NL/MIN Air source pressure: 5-6 kgf/cm2 Weight: 4,000 kg
-
