We work closely with you in the development of our wave springs for the intended application. Where necessary, we are pleased to assist you with processes ranging from dimensioning to verification to production. With the help of our specialist expertise, we will find the right solution for you together. We produce both single-turn and multi-turn designs with wavy and straight surfaces.

Just as their terms imply, the gap type is split to retain a gap between the ends, while the overlap type has overlapping ends. Thus, the ends are free to move circumferentially as the spring outside diameter grows during compression.

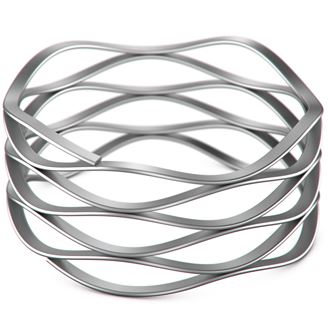

Crest-to-Crest Wave Springs with squared-shim ends provide a 360° contact surface when compared to the wave point contact of plain ends. The shim-ends under load, more evenly distribute the springs force upon adjacent components. This feature is similar to the concept of double-disc grinding springs for a flat surface. Shim ends have also been used to affix springs to mating components, as a flat locating surface that may be attached by various methods in the assembly.
